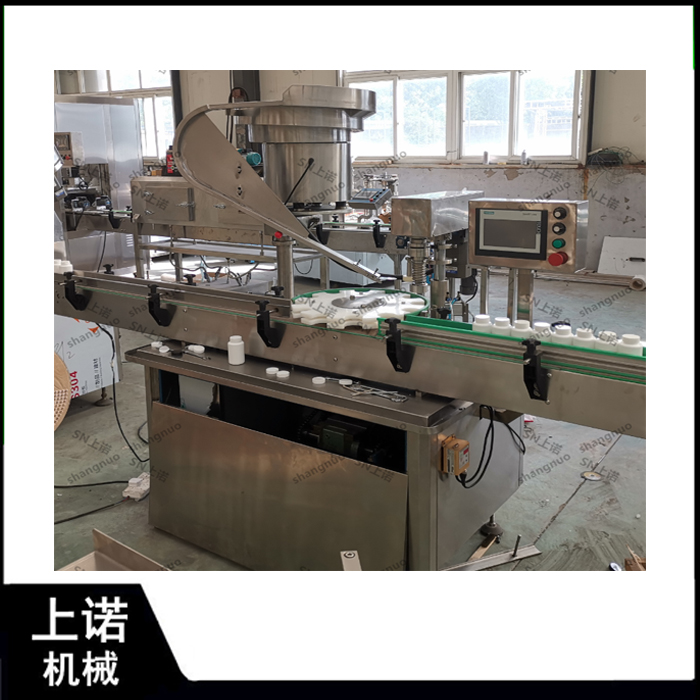

SN-XG Automatic Screw Capping Machine
This machine is suitable for automatic capping of glass bottle, plastic bottle, rolling cap/locking cap of metal cap, screwing cap of pump head nozzle, etc. It is widely used in medicine, food, chemical industry and so on.
Model | SN-XG single head | SN-XG2 double heads | ||
Bottle diameter | 25-150mm | 25-150mm | ||
Cap diameter | 20-120mm | 20-120mm | ||
Production capacity | 20-45 bottles/min | 40-80 bottles/min | ||
Capping rate | ≥ 98% | ≥ 98% | ||
Power supply | 1Ph. 220V, 50/60Hz | 1Ph. 220V, 50/60Hz | ||
Power | 1.5 KW | 1.8KW | ||
Net weight | 500kg | 500kg | ||
Overall dimension | L2000×W1500×H1500mm | L2000 × W1500 × H1500mm |
